City Skyliner mobile Observation Tower
City Skyliner

TECHNICAL DETAILS

Total height: 81 mtrs. / 266 ft.
Footprint: 23 mtrs (width) x 24 mtrs. (depth)
Max. lift height: 72 mtrs. / 236 ft.
Capacity: 60 pax. / 4.5 metric tons
Height of staircase: 2.5 mtrs.
Total weight: 270 tons (held by 6 supports, see technical leaflet)

POWER

Main motor: 110 kW
Cabin motor: 60 kW
Lighting: 6 kW
Connecting standard: 120 kW
Hedging: 250 A
Voltage: 400 volts
Frequency: 50 Hz

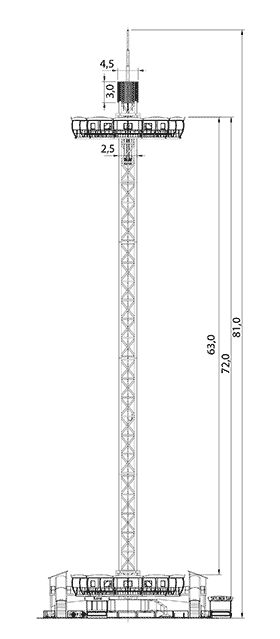

FOOTPRINT

City Skyliner Footprint

The floor plan is variable, please contact us!

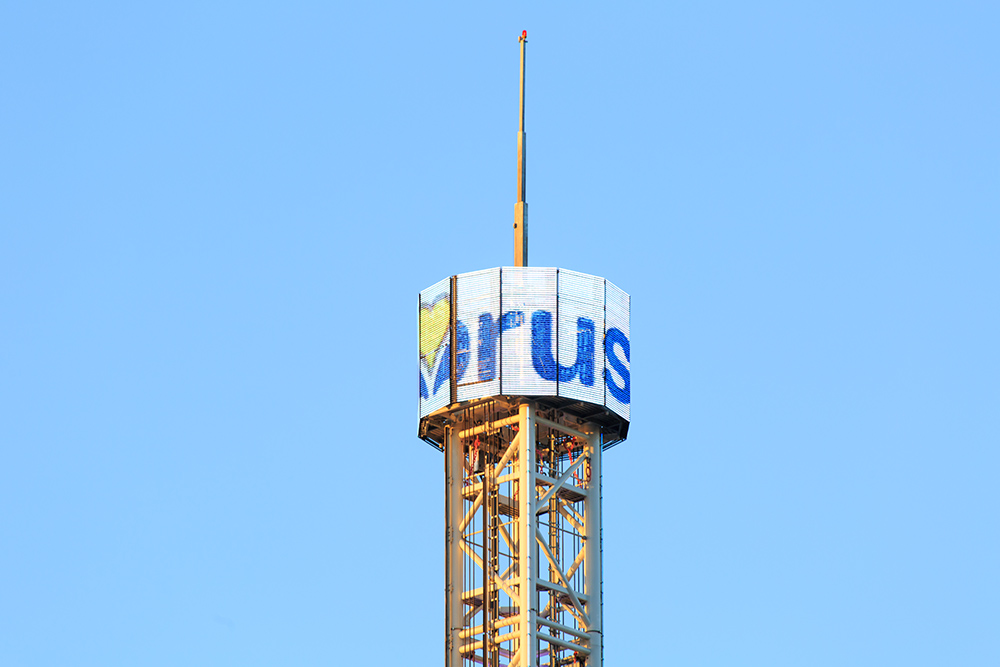

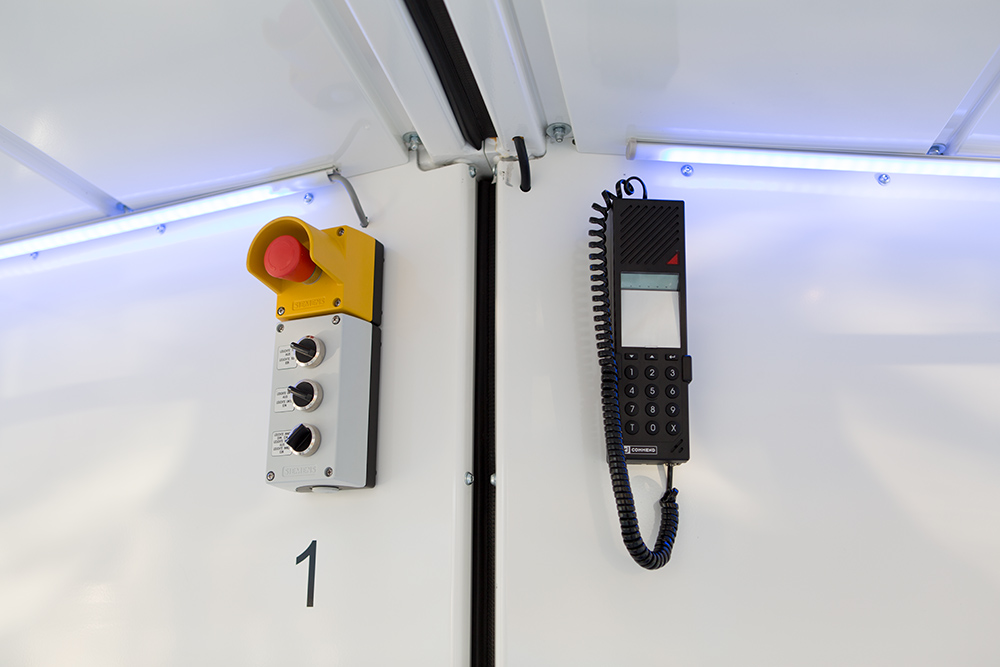

Details cabin, drive and infotainment
